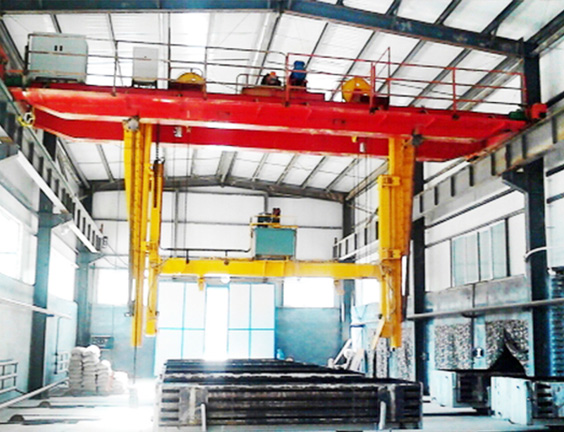

The aerated concrete crane is a special crane used to lift concrete molds and blanks. It consists of four parts: a box-shaped bridge frame, a cart traveling mechanism, a lifting mechanism, and electrical equipment. It is used with a special spreader to complete the turning, opening and demolding of the mold. The lifting mechanism is fixed between the two main beams, consisting of a motor, a reducer, a brake, a drum and a guide pulley. The wire rope winds out of the drum and then winds around the pulley on the spreader through the pulley fixed on the bridge or trolley at the left and right ends, forming double lifting points. The cart adopts the separate drive mode, cone motor braking and open gear transmission. The operating motor can regulate speed through the soft-start motor and variable frequency according to user requirements to ensure the smooth start and safe operation.
The aerated concrete crane is a special crane used to lift concrete molds and blanks. It consists of four parts: a box-shaped bridge frame, a cart traveling mechanism, a lifting mechanism, and electrical equipment. It is used with a special spreader to complete the turning, opening and demolding of the mold.
The lifting mechanism is fixed between the two main beams, consisting of a motor, a reducer, a brake, a drum and a guide pulley. The wire rope winds out of the drum and then winds around the pulley on the spreader through the pulley fixed on the bridge or trolley at the left and right ends, forming double lifting points.
The cart adopts the separate drive mode, cone motor braking and open gear transmission. The operating motor can regulate speed through the soft-start motor and variable frequency according to user requirements to ensure the smooth start and safe operation.
