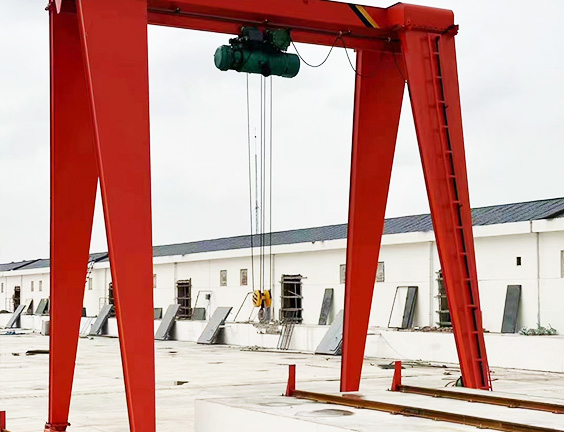

The MH type single-girder gantry crane is an outdoor crane equipped with a CD/MD type electric hoist and has been widely used in workshops, warehouses, storage yards, and railways, etc. It is composed of a girder, a leg, a base, a cart traveling mechanism and a trolley traveling mechanism.
Capacity:
3-32 tonsSpan:
12-35mLifting height:
6-50mLifting speed:
Single speed or double speedThe MH type single-girder gantry crane is an outdoor crane equipped with a CD/MD type electric hoist and has been widely used in workshops, warehouses, storage yards, and railways, etc. It is composed of a girder, a leg, a base, a cart traveling mechanism and a trolley traveling mechanism.

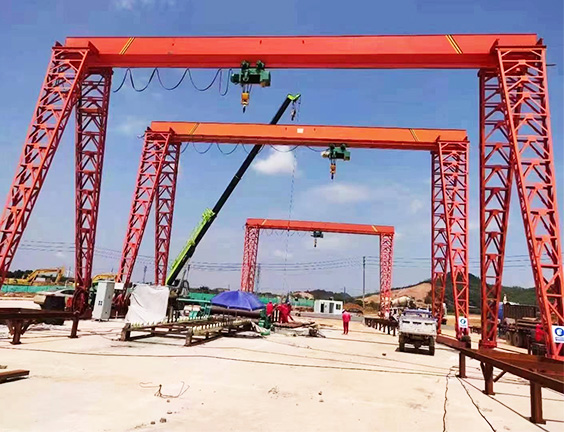

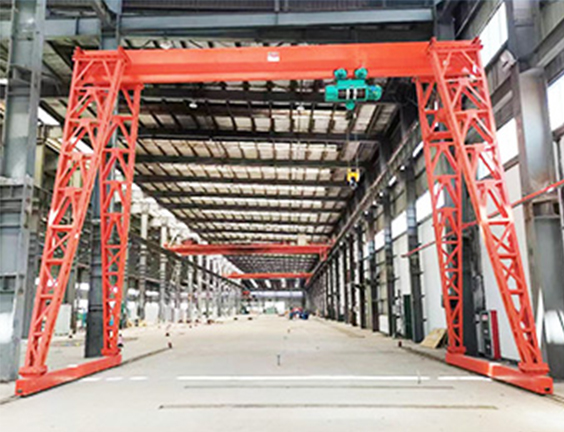

There are two types of girder and leg: box and truss. The former type is easy to make with good processes, and the latter type is light but with strong wind resistance. The whole machine boasts light weight, simple structure, easy installation and maintenance, and wide-range applications.
If you need to use the crane in an environment with flammable, explosive and corrosive gases, please let us know, and we will equip the crane with appropriate measures.
There are three control modes for you to choose from: handle, wireless remote control and cab.
Petrochemical, oil and gas, automobile, electric power, nuclear power/energy, metallurgy, machinery manufacturing, paper making, shipyard, marine engineering, waste disposal, mining and other general industrial scenarios
|
Lifting capacity |
Time |
3 |
5 |
10 |
16 |
20 |
|
|
Operation type |
|
Handle/remote control/cab |
|||||
|
Speed |
Hoist lifting |
m/min |
8 /0.8 |
8/0.8 |
7,7/0.7 |
3.5 |
3.5 |
|
|
Lifter walking |
m/min |
20 |
20 |
20 |
20 |
20 |
|
|
Crane walking |
|
20 |
20 |
20 |
20 |
20 |
|
|
|
|
30,40 |
30,40 |
30,40 |
30,40 |
30,40 |
|
Engine |
Hoist lifting |
Model/kw |
ZD41-4/4.5 |
ZD141-4/7.5 ZDS10.8/4.5 |
ZD151-4/13 ZDS11.5/4.5 |
ZD151-4/13 |
ZD152-4/18 |
|
|
Lifter walking |
|
ZDY12-4/0.4 |
ZDY121-4/0.8 |
ZDY21-4/0.8×2 |
ZDY121-4/0.8×2 |
YZD-4/0.8×4 |
|
|
Trolley traveling |
|
ZDY21-4/0.8×2 |
YZR132M1-6/2.2×2 |
YZR160M1-6/6.3×2 |
YZR160M1-6/6.3×2 |
YZR160M1-6/6.3×2 |
|
|
|
|
ZDY21-4/1.5×2 |
YZR132M2-6/3.7×2 |
|
YZR160M2-6/8.5×2 |
YZR160M2-6/8.5×2 |
|
|
|
|
ZDR22-4/1.5×2 |
YZR132M2-6/3.7×2 |
YZR160M1-6/6.3×2 |
YZR160M2-6/8.5×2 |
YZR160M2-6/8.5×2 |
|
|
|
|
ZDR24-4/2.2×2 |
YZR160M1-6/5.5×2 |
|
YZR160L2-6/11×2 |
YZR160L2-6/11×2 |
|
Electric hoist |
Type |
CD1/MD1 |
CD1/MD1 |
CD1/MD1 |
HC/HM |
HC/HM |
|
|
Lifting height |
m |
6,9,12 |
|||||
|
Working level |
|
A3、A4 |
|||||
|
Power |
|
380V 50HZ, three-phase alternating current, or according to customer demands |
|||||
